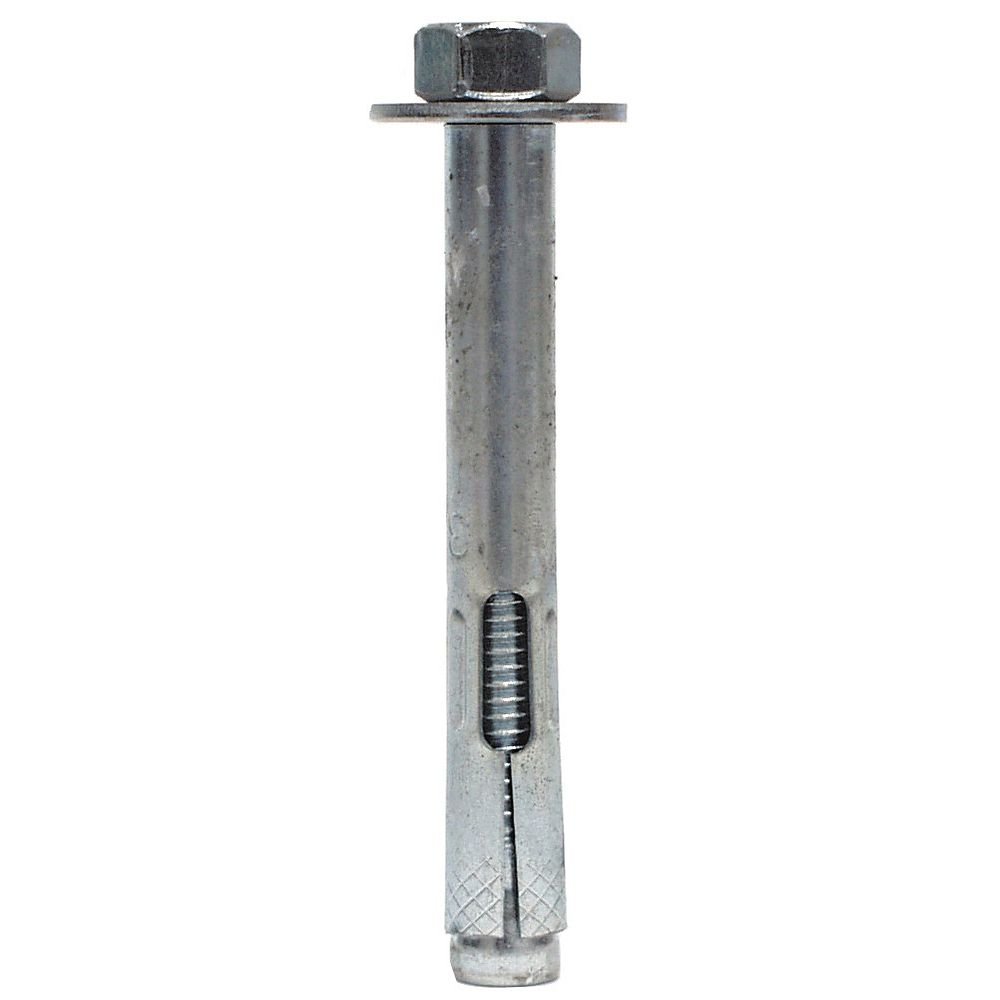

The Simpson Sleeve-All 5/8 in. x 2-1/4 in. Hex-Head Sleeve Anchor is a pre-assembled, expanding sleeve anchor engineered for secure, reliable fastening in all types of solid base materials, including concrete and brick. Built from zinc-plated carbon steel, this mechanical anchor is equally at home on demanding structural and infrastructure projects as it is on everyday construction tasks, and its FM and UL approval with multiple DOT listings means it meets the certification requirements of regulated and inspected work.

Key Features

• Expansion anchor for solid base materials - mechanically locks into concrete, brick, and similar substrates for a secure hold that does not rely on adhesive or curing time
• FM and UL approved with multiple DOT listings - meets third-party certification requirements, making this anchor acceptable for regulated, inspected, and infrastructure projects without added documentation burden
• Hex head design - accepts a standard 3/4 in. wrench for straightforward tightening, reducing the need for specialized tools on the job site
• Pre-assembled construction - arrives ready to install, simplifying on-site handling and speeding up placement compared to multi-piece alternatives
• Zinc-plated carbon steel construction - the zinc plating provides a corrosion-resistant barrier over the carbon steel body, helping the anchor hold up in typical construction environments
• 5/8 in. drill bit compatibility - matched hole and anchor diameter promotes a proper, snug fit; drilling to the correct size is essential for achieving full load capacity

Why This Product

• Third-party approved for regulated work - FM and UL approval combined with multiple DOT listings gives contractors and project managers confidence that this sleeve anchor satisfies compliance requirements on inspected and government-regulated job sites, reducing approval friction
• Engineered by Simpson for demanding structural applications - Simpson is a recognized name in mechanical anchoring, and the Sleeve-All line is specifically designed to perform in the most demanding solid-base applications, from large infrastructure builds to precise residential masonry work
• Simple, tool-friendly installation - the pre-assembled design and standard hex head mean installers need only a 5/8 in. drill bit and a 3/4 in. wrench to complete a secure installation, keeping setup time low and minimizing the chance of assembly errors in the field
• Broad application versatility - rated for concrete, brick, and a range of solid masonry substrates, this expanding sleeve anchor handles a wide variety of anchoring needs across structural, infrastructure, and general construction contexts without requiring a different fastener for each material

Specifications

• Model Number: SL62214H
• Brand: Simpson Strong-Tie
• Head Type: Hex Head
• Size: 5/8 in. x 2-1/4 in.
• Bolt/Rod Diameter: 1/2 in.
• Drill Bit Size: 5/8 in.
• Wrench Size: 3/4 in.
• TPI: 13
• Material: Carbon Steel
• Coating/Finish: Zinc Plated
• Packaging: Packs of 25 and Cartons of 100

Approved Applications

• Solid concrete base materials
• Brick and masonry substrates
• Infrastructure and structural construction projects
• General construction and do-it-yourself applications requiring a secure mechanical anchor

Frequently Asked Questions

What base materials is the Simpson SL62214H Sleeve-All anchor designed for?

The SL62214H is an expansion anchor designed for use in all types of solid base materials, including concrete and brick. It is not intended for use in hollow or unsupported substrates.

What drill bit size is required to install this sleeve anchor?

A 5/8 in. drill bit is required to create the correct hole size for proper installation. It is important to avoid drilling oversized holes, as this will make it difficult to set the anchor and will reduce the anchor's load capacity.

What wrench size is needed to tighten the hex head on the SL62214H?

A 3/4 in. wrench is required to properly tighten the hex head on this sleeve anchor during installation.

Is the Simpson SL62214H anchor approved for use on regulated or inspected projects?

Yes. The SL62214H Sleeve-All anchor is FM and UL approved and carries multiple DOT listings, making it suitable for use on projects that require certified and listed mechanical anchors.

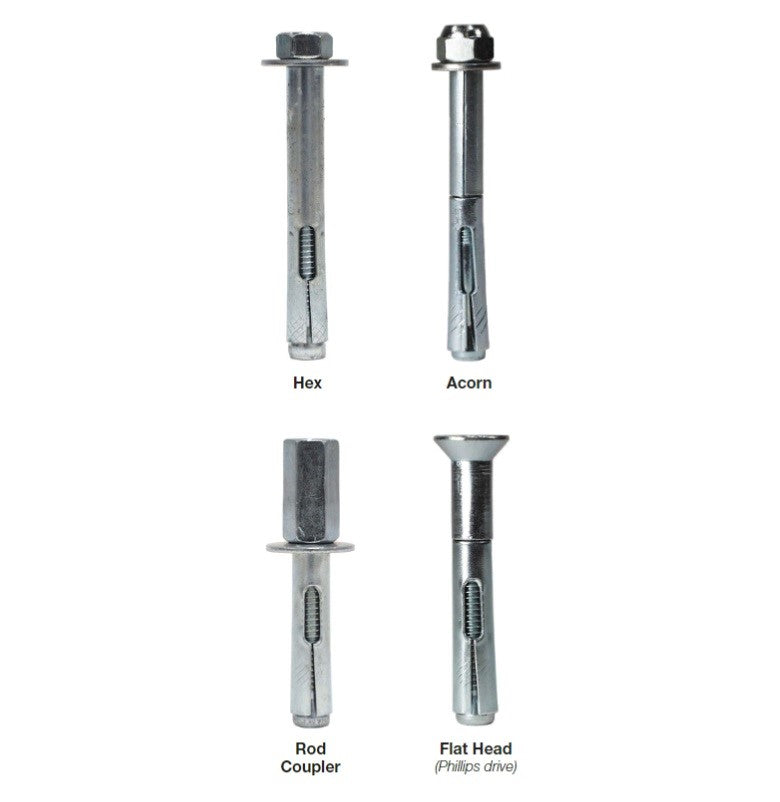

Note: Product dimensions and/or thread length may differ from picture. Please see the item description above for specifications.
