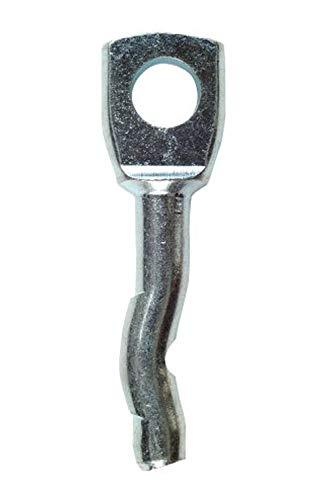

The Simpson 1/4 in. Zinc-Plated Tie-Wire Head Crimp Drive Anchor from Simpson is an easy-to-install expansion anchor engineered for use in concrete and grout-filled block. The preformed curvature along the shaft creates an expansion mechanism that secures the anchor in place and eliminates the need for a secondary tightening procedure, making it a practical choice for contractors and installers who need reliable, efficient fastening. The tie-wire head configuration makes this anchor especially well-suited for suspended ceiling applications, including hanging overhead support for sprinkler pipes and suspended ceiling panels.

Key Features

• Unique curved shaft design - the preformed curvature acts as a built-in expansion mechanism, delivering secure placement in concrete and grout-filled block without extra steps
• No secondary tightening required - the self-securing design speeds up anchor installation, reducing labor time on the job site
• Tie-wire head style - specifically suited for suspended ceiling applications such as hanging overhead support for sprinkler pipes and suspended ceiling panels
• Zinc-plated carbon-steel construction - provides the corrosion resistance and structural integrity needed for typical interior construction environments
• 1/4 in. size - a commonly used dimension that works with standard 1/4 in. drill bit setups, simplifying tool and bit coordination on site

Why This Product

• Faster installation without sacrificing holding strength - by eliminating the need for a secondary tightening step, this crimp drive anchor cuts installation time while still delivering secure expansion in concrete and grout-filled block
• Purpose-built for suspended ceiling and overhead support work - the tie-wire head is specifically designed for the demands of ceiling suspension systems, making it a focused solution rather than a generic fastener
• Versatile base material compatibility - engineered to perform in both concrete and grout-filled block, giving installers a single reliable anchor option across common structural substrates
• Zinc-plated finish for added durability - the zinc plating over carbon steel provides a layer of corrosion resistance that helps the anchor hold up in typical interior construction conditions over time

Specifications

• MPN: CD25118T
• Brand: Simpson Strong-Tie
• Head Type: Tie-Wire Head
• Size: 1/4 in.
• Material: Carbon Steel
• Coating: Zinc Plated
• Finish: Zinc Plated
• Packaging: Packs of 100 and Cartons of 500

Approved Applications

• Hanging overhead support for sprinkler pipes
• Suspended ceiling panel installations
• Fastening into concrete
• Fastening into grout-filled block

Frequently Asked Questions

What type of base material is the CD25118T designed for?

The Simpson Strong-Tie Crimp Drive anchor is designed for use in concrete and grout-filled block, providing a secure hold in these common construction base materials.

Does the CD25118T require a secondary tightening step after installation?

No. The preformed curvature along the shaft creates an expansion mechanism that secures the anchor in place, eliminating the need for a secondary tightening procedure and speeding up overall installation.

What is the tie-wire head style used for?

The tie-wire head is specifically designed for suspended ceiling applications, such as hanging overhead support for sprinkler pipes or suspended ceiling panels.

What are the material and coating of the CD25118T anchor?

The CD25118T is constructed from carbon steel with a zinc-plated finish, providing corrosion resistance suited for typical interior construction environments.

Note: Product dimensions may differ from picture.
