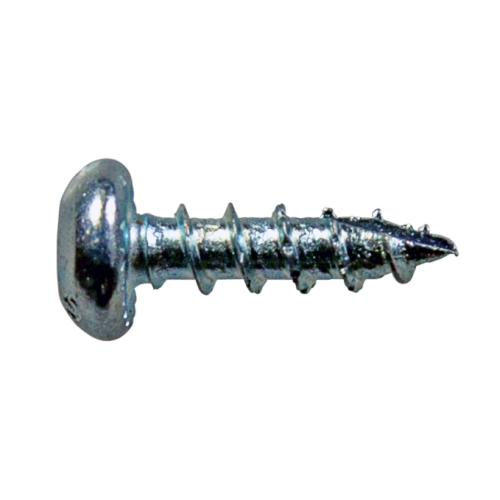

The Simpson Multi-Material Pan Head Screw #6 x 1/2 in. T15 6-Lobe Clear Zinc 200-Pack is engineered specifically for fastening Simpson Strong-Tie connectors - such as the A35 framing angle - to wood and engineered wood. This compact, fully-threaded fastener starts fast and drives effortlessly, making it a reliable choice for connector installation work where consistent performance matters.

Key Features

• T-15 6-lobe recess for secure driving - Reduces cam-out and keeps the driver bit seated firmly, so each screw seats cleanly without slipping or stripping.
• Fully-threaded shank - Thread engagement runs the entire length of the fastener, maximizing holding strength through the connector and into the wood substrate.
• Type-17 point with serrated threads for fast starts - The self-starting point bites immediately and the serrated threads cut through wood fibers efficiently, reducing the effort and time needed to drive each screw.
• Locking under-head serrations - Grip the connector flange tightly once driven, resisting loosening under load and vibration for a more secure installation.
• Clear zinc coating applied in accordance with ASTM F1941 - A standardized coating process ensures a consistent, verified level of corrosion resistance on every screw in the pack.

Why This Product

• Purpose-built for Simpson Strong-Tie connector installation - Rather than a general-purpose fastener, this screw is designed around the specific demands of attaching Simpson Strong-Tie hardware to wood and engineered wood, so the geometry and thread profile work in direct support of that application.
• Faster installation with fewer frustrations - The combination of the Type-17 self-starting point, serrated threads, and T-15 6-lobe drive means screws start without pre-drilling and drive without the cam-out that wastes time on the job.
• Positive connector clamping on every drive - Locking under-head serrations pull the connector tight against the wood face and resist backing out, giving installers confidence that each connection stays secure after the driver moves on.
• Standardized corrosion protection for consistent quality - The ASTM F1941 clear zinc coating is applied to a defined standard, not an ad hoc finish, so every fastener in the 200-count pack delivers the same baseline protection.

Specifications

• MPN: PH612IR200
• Screw Size: #6
• Length: 1/2 in.
• Head Type: Pan Head
• Head Diameter: 0.26 in.
• Drive Type: T15 6-Lobe
• Thread Type: Serrated Threads
• Coating: Clear Zinc Coating
• Coating Standard: ASTM F1941
• Packaging Qty: 200

Approved Applications

• Specialty

Frequently Asked Questions

What materials are these screws designed to fasten into?

The PH612IR200 Multi-Material Screw is designed for use when installing Simpson Strong-Tie connectors to wood and engineered wood, driving in effortlessly thanks to the Type-17 point with serrated threads.

What drive tool is required for the PH612IR200?

These screws feature a T-15 6-lobe recess, so a T15 6-lobe (Torx-style) driver bit is required for installation.

What corrosion protection do these screws have?

The PH612IR200 features a clear zinc coating applied in accordance with ASTM F1941, providing a standardized level of corrosion resistance.

How many screws are included in the PH612IR200 package?

Each package of the PH612IR200 contains 200 screws, making it well-suited for connector installation projects requiring a reliable supply of fasteners on hand.
