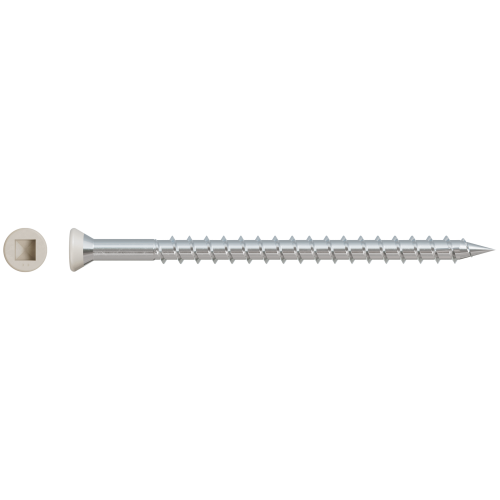

Simpson #7 x 2-1/2 in. Collated Trim-Head Screws in Type 305 Stainless Steel, Tan 02 are purpose-built fasteners for wood deck board, dock, and boardwalk installations where a clean surface appearance and long-term corrosion resistance are both priorities. Engineered as part of the Simpson Quik Drive collated screw system, these sharp-point, box-thread screws pair directly with the Quik Drive auto-feed screw driving system to deliver consistent, efficient fastening across residential, commercial, and industrial decking projects. Available in a Tan 02 color matched to blend with most major PVC and composite decking manufacturers, they let the deck surface speak for itself rather than the fasteners.

Key Features

• Trim-style head - sits low and inconspicuous on the decking surface, producing a clean, finished look that keeps the focus on the deck boards, not the fasteners
• Curved collation strips - hold screws up and away from the work surface, making it easier to move and position the Quik Drive tool without interrupting workflow
• Sharp point - starts penetration quickly and cleanly without pre-drilling, reducing installation steps on wood deck boards
• Box threads - provide strong holding power in wood-to-wood fastening applications including decks, docks, and boardwalks
• #2 square drive - reduces cam-out during driving for more consistent screw setting and less risk of stripped heads
• Type 305 stainless steel construction - delivers high-level corrosion resistance, making these screws a sound choice for outdoor and marine environments where moisture exposure is a constant concern
• Tan 02 painted head color - blends with most major PVC and composite decking manufacturers so fasteners remain visually unobtrusive after installation
• Driver bit included in each box - gets you fastening immediately out of the box, with replacement bit model BIT2S available separately when needed

Why This Product

• System-matched performance - these screws are specifically designed for use with Simpson Quik Drive attachments and the Quik Drive PRO250G2 auto-feed system, so collation, drive depth, and strip feed work together without the compatibility guesswork that comes with generic collated screws
• Corrosion resistance built for outdoor exposure - Type 305 stainless steel is an intentional material choice for deck, dock, and boardwalk applications where fasteners face ongoing moisture, humidity, and the elements throughout their service life
• Aesthetics designed into the fastener - the combination of a trim-style low-profile head and a color-matched Tan 02 finish means the screw blends into the deck surface rather than drawing attention, which is especially valuable on high-visibility composite and PVC deck installations
• Engineered for efficient installation - the patented curved collation, sharp point entry, and included driver bit all reduce friction in the installation process, supporting faster, more consistent fastening on larger decking projects

Specifications

• MPN: DTH212S305TN02
• Screw Size: #7
• Length: 2-1/2 in.
• Head Type: Trim Head
• Drive Type: #2 Square
• Thread Type: Box Threads
• Point Type: Sharp Point
• Collation Type: Curved
• Material: Type 305 Stainless Steel
• Finish: Type 305 Stainless Steel
• Color: Tan 02
• Compatible Tool: Simpson Strong-Tie Quik Drive PRO250G2 auto-feed screw driving system or attachment
• Quantity: 1,000

Approved Applications

• Decks - Deck Boards Wood

What's Included

• 1,000 Simpson DTH212S305TN02 Trim-Head Screws
• 1 driver bit included; replacement bit model BIT2S

Frequently Asked Questions

What tool is required to install the DTH212S305TN02 collated trim-head screws?

These screws are designed to install with the Simpson Strong-Tie Quik Drive PRO250G2 auto-feed screw driving system or a compatible attachment. The curved collation strip is specifically engineered for use with Quik Drive attachments to ensure problem-free system performance.

Why is Type 305 stainless steel used for these deck screws?

Type 305 stainless steel provides high-level corrosion resistance, making these screws particularly well-suited for marine or high-exposure outdoor environments where PVC or composite decks are installed and resistance to moisture and the elements is critical.

What does the Tan 02 color designation mean, and will it match my decking?

Tan 02 refers to a specific painted head color in Simpson's lineup. These trim-head screws are available in 13 colors matched to blend with most major PVC and composite decking manufacturers, allowing the fastener head to remain as inconspicuous as possible on the finished deck surface.

What drive bit is compatible with the DTH212S305TN02, and is one included?

These screws use a #2 square drive. One driver bit is included in each box. If a replacement is needed, the compatible replacement bit model is BIT2S.
