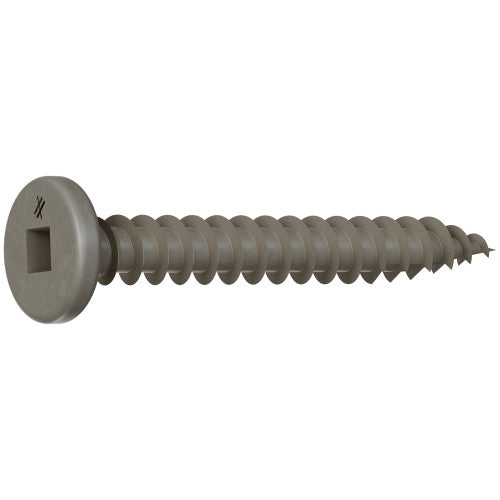

The Simpson #10 x 1 1/2 in. Collated PC Standing Seam Roofing Panel Clip Screw is purpose-built for fastening standing-seam roofing panel clips to wood substrates with speed and consistency. Engineered by Simpson for use with Quik Drive collated fastening systems, this pancake-head screw combines a Type-17 point, fine threads at 12 TPI, and a Quik Guard coating to deliver reliable performance in demanding roofing environments. With straight collation and a low-profile head design, it keeps installation smooth and uninterrupted across high-volume professional roofing work.

Key Features

• Pancake Head Design - The ultra-low-profile head sits flush against roofing panel clips, preventing interference with the standing-seam panel and ensuring a clean, secure installation.
• Type-17 Point - This self-drilling point style allows for fast starts and clean penetration into wood substrates without the need for pre-drilling, reducing installation time on the job site.
• Fine Threads at 12 TPI - Tightly spaced threads deliver strong clamping force and reliable holding power in wood, keeping panel clips firmly anchored under roofing loads.
• Quik Guard Coating - Provides corrosion resistance suited to roofing environments, helping the fastener hold up against the moisture exposure inherent in outdoor roofing applications.
• #2 Square Undersized Drive - Promotes excellent bit engagement and reduces cam-out during high-speed collated installation, maintaining a consistent drive every time.
• Straight Collation for Quik Drive Compatibility - Designed specifically for use with Quik Drive collated fastening systems, straight collation keeps the workflow efficient and uninterrupted across large roofing projects.
• Driver Bit Included - Each box includes a driver bit, with the replacement bit model being the BIT2SU, so crews can get to work immediately without sourcing additional accessories.

Why This Product

• Built for the Specific Task - Unlike general-purpose screws, this fastener is engineered specifically for standing-seam roofing panel clip installation into wood substrates, meaning every design detail - from the pancake head to the fine thread pitch - serves that single application.
• Faster Installation with No Pre-Drilling - The Type-17 self-drilling point eliminates the need for pilot holes, and compatibility with Quik Drive collated systems keeps fastening continuous, reducing labor time on large roofing jobs.
• Corrosion Resistance Where It Counts - The Quik Guard coating addresses one of the most common failure points in roofing fasteners by offering protection against the moisture and weather exposure that roof-mounted screws face over time.
• High-Volume Package Ready for Professional Work - With 1,500 screws per box and a driver bit included, this product is packaged to support sustained, high-volume professional roofing applications without frequent supply interruptions.

Specifications

• Specification: Value
• Model Number: PCQ112BS1012
• Screw Size: #10
• Length: 1-1/2 in.
• Head Diameter: 0.405 in.
• Head Type: Pancake Head
• Drive Type: #2 Square, Undersized
• Thread Type: Fine Threads
• TPI (Threads Per Inch): 12
• Point Type: Type-17 Point

Frequently Asked Questions

What collated fastening system is this screw designed to work with?

This screw is engineered for use with Quik Drive collated fastening systems and is specifically compatible with the Quik Drive PROPP150G2. The straight collation keeps the workflow efficient and consistent, making these screws well-suited for high-volume professional roofing applications.

Does this screw require pre-drilling before installation?

No pre-drilling is required. The Type-17 point is a self-drilling point style that allows for fast starts and clean penetration into wood substrates without the need for a pilot hole.

What drive type does this screw use, and is a driver bit included?

This screw uses a #2 Square Undersized drive, which provides excellent bit engagement and reduces cam-out during high-speed collated installation. A driver bit is included in each box, and the replacement bit model is BIT2SU.

How many screws come in a package, and what substrate are they intended for?

Each package contains 1,500 screws. They are designed for fastening standing-seam roofing panel clips to wood substrates, with fine threads at 12 TPI delivering strong clamping force and holding power in wood.
