Product Description
The Simpson Deck-Drive DCU Composite Screw is engineered specifically for composite and PVC decking, delivering clean, professional fastening results with greater ease of installation and superb corrosion resistance. The red Quik Guard-coated cap head is color-matched to blend with popular decking manufacturers for a more concealed finish, making this collated screw the single go-to fastener for composite deck board applications - no need to mix and match screws across different decking materials.
Key Features
- Tri-lobe thread design - reduces damage to the composite board while driving, protecting the integrity of your decking surface during installation
- Inverted upper threads - clear excess material as the screw seats, ensuring consistent, flush results across every fastener you drive
- Type-17 point - penetrates composite decking with ease for faster starts, reducing installation time on large decking projects
- Cap head design - prevents mushrooming and material from rising above the deck surface, leaving a smooth, clean-looking finish
- Red color-matched head - blends with popular composite decking colors for a more concealed, polished appearance that enhances the final look of the deck
- Quik Guard coating - suitable for use in pressure-treated lumber and provides a level of corrosion resistance equivalent to hot-dip galvanization (ASTM A153, Class D) in some exposures, extending the long-term performance of each connection
- Trex-approved fastener - meets Trex composite decking requirements, giving installers and homeowners confidence in compliance and warranty protection
- T20 6-lobe drive with included driver bit - delivers positive bit engagement to reduce cam-out and keep installation efficient; a replacement bit (model BITTX20-PL-RC3) is available separately
- Curved collation format - compatible with the Quik Drive PRO300SG2 auto-feed screw driving system and attachment for high-volume, repetitive decking installations that demand speed and consistency
Why This Product
- One screw for all composite decking types - the Deck-Drive DCU eliminates the need to stock multiple screw types for different composite or PVC decking brands, simplifying your material list and reducing jobsite confusion
- Purpose-built design protects your investment - the combination of tri-lobe threads, inverted upper threads, and a cap head work together to prevent board damage, material rise, and inconsistent seating - common problems with general-purpose screws used on composite decks
- Corrosion resistance built for outdoor exposure - the Quik Guard coating delivers hot-dip galvanization-equivalent corrosion resistance (ASTM A153, Class D) in some exposures and is rated for use with pressure-treated lumber, making it well-suited for the demanding outdoor environment of a deck
- Auto-feed system compatible for faster production - the curved collation works directly with the Quik Drive PRO300SG2 auto-feed driving system, making this screw an efficient choice for contractors and builders working on high-volume composite decking installations
Specifications
- MPN: DCU234SRD
- Screw Size: #10
- Length: 2-3/4 in.
- Head Type: Cap Head
- Head Diameter: 0.230 in.
- Drive Type: T20 6-Lobe
- Thread Type: Tri-Lobe Threads
- Point Type: Type-17 Point
- Coating/Finish: Quik Guard Coating
- Head Color: Red

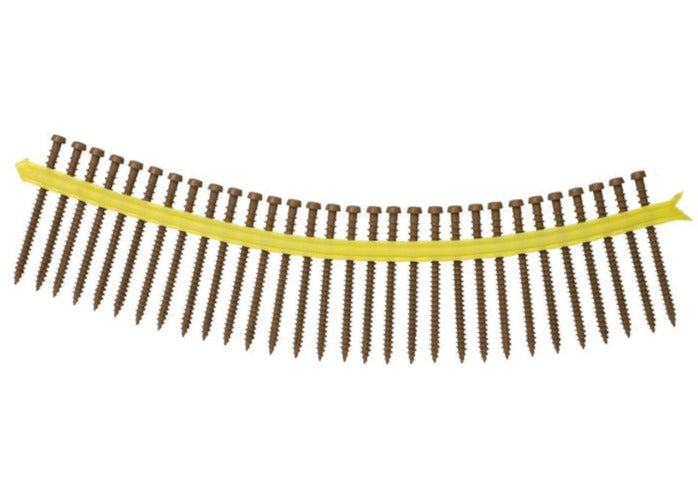

- Collation Type: Curved
- Compatible Tool: Quik Drive PRO300SG2 auto-feed screw driving system and attachment
- Packaging Quantity: 1,000
Approved Applications
- Decks - Deck Boards Composite
What's Included
- T20 6-lobe driver bit included (replacement bit model BITTX20-PL-RC3)
Frequently Asked Questions
- What type of decking is the Deck-Drive DCU Composite Screw designed for?
- The Deck-Drive DCU Composite Screw is designed for composite and PVC decking. It is engineered to provide beautiful fastening results for all types of composite decking while offering greater ease of installation, a clean finish, and superb corrosion resistance.
- Is this screw approved for use with Trex composite decking?
- Yes. The Deck-Drive DCU Composite Screw is an approved fastener by Trex for use with Trex composite decking.
- What corrosion resistance does the Quik Guard coating provide?
- The Quik Guard coating is suitable for use in pressure-treated lumber and provides a level of corrosion resistance that is equivalent to hot-dip galvanization (ASTM A153, Class D) in some exposures.
- Can this collated screw be used with an auto-feed driving system?
- Yes. This screw installs with the Quik Drive PRO300SG2 auto-feed screw driving system and attachment, and includes a T20 6-lobe driver bit in the package. The replacement bit model is BITTX20-PL-RC3.
Downloads and Resources
- Composite-Decking Color Cross-Reference chart
