Product Description

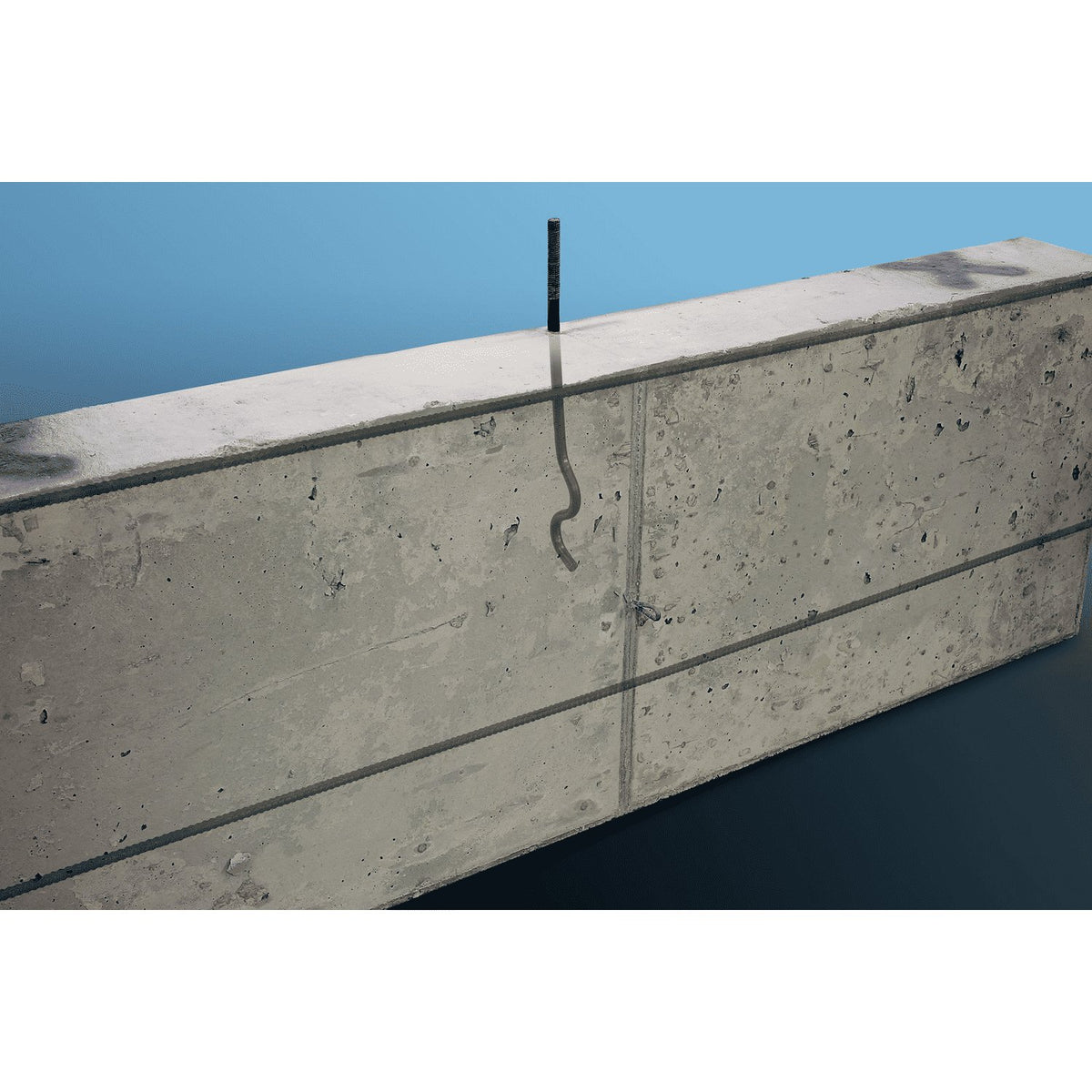

Simpson SSTB14 SSTB 5/8 in. x 16 in. Anchor Bolt is a heavy-duty anchor bolt engineered by Simpson Strong-Tie for maximum performance when used with holdowns and Simpson Strong-Tie Strong-Wall shearwalls. Extensive testing has been conducted to determine design load capacity across many common installation applications, and the SSTB is code listed by ICC-ES under the 2012, 2015, 2018, and 2021 IBC and IRC.
Key Features

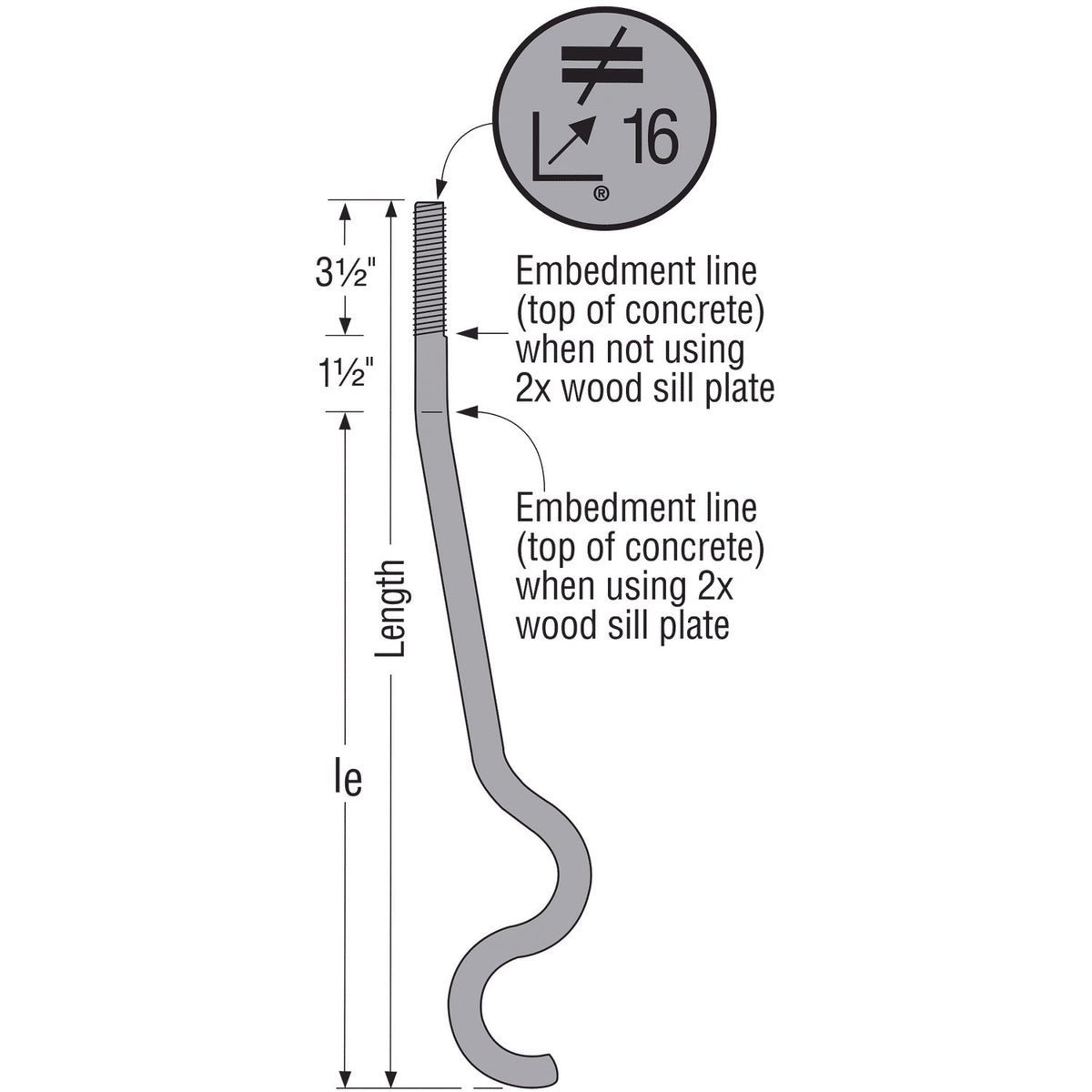

- Identification on the bolt head showing embedment angle and model
- Offset angle reduces side bursting, and provides more concrete cover
- Rolled thread for higher tensile capacity
- Stamped embedment line aids installation
- SSTB is suitable for monolithic and two-pour concrete applications
- Code listed by ICC-ES under the 2012, 2015, 2018, and 2021 IBC and IRC
- Made from ASTM F-1554, Grade 36 steel
- Made in the United States
Specifications
- Model Number: SSTB14
- Diameter: 5/8 in.
- Length: 16 in.
- Material: ASTM F-1554, Grade 36
- Finish: Uncoated Steel
- Coating: None
- Country of Origin: United States
Approved Applications
- Anchor bolt for holdown connections
- Anchor bolt for Simpson Strong-Tie Strong-Wall shearwalls
- Monolithic concrete applications
- Two-pour concrete applications
Frequently Asked Questions
- What are the primary applications for the Simpson SSTB14 anchor bolt?
- The SSTB14 is designed for maximum performance as an anchor bolt for holdowns and Simpson Strong-Tie Strong-Wall shearwalls. It is suitable for both monolithic and two-pour concrete applications.
- What building codes is the SSTB14 listed under?
- The Simpson Strong-Tie SSTB anchor bolts are code listed by ICC-ES under the 2012, 2015, 2018, and 2021 IBC and IRC.
- Do nuts and washers come included with the SSTB14?
- Nuts and washers for holdown attachment are not supplied with the SSTB; install standard nuts, couplers and/or washers as required.
- What material is the SSTB14 made from, and does it have a protective coating?
- The SSTB14 is made from ASTM F-1554, Grade 36 uncoated steel and has no applied coating or finish.
Note: Product dimensions may differ from picture. Please see item description for specifications.
