Product Description

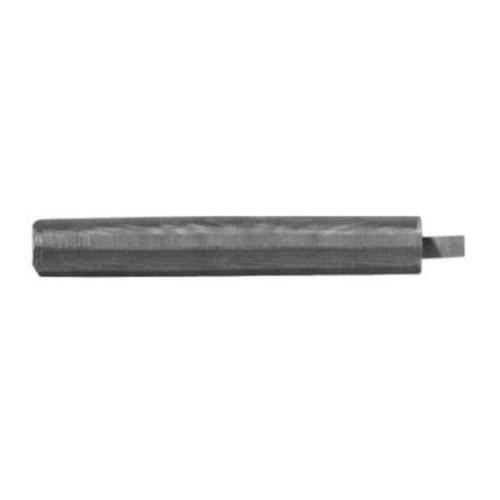

The Simpson Strong-Tie ETS7517 17-in. Steel Epoxy-Adhesive Screen Tube for 3/4-in. Rod is a precision-engineered carbon steel screen tube designed for use in hollow base material applications. Manufactured by Simpson Strong-Tie, this screen tube contains adhesive around the anchor and prevents it from running into voids, ensuring thorough coating and bonding of the rod to the screen tube and base material. It is specifically designed to work with Simpson Strong-Tie ET-3G adhesive to precisely control the amount of adhesive that passes through the mesh.
Key Features
- Caution: Screen tubes are designed for a specific adhesive type
- This epoxy screen tube must be used with ET-3G formulations
- For 3/4-in. rod diameter
- Hole size: 1 in.
- Length: 17 in.
- Made from 60 mesh carbon steel
Specifications
- MPN: ETS7517
- Brand: Simpson Strong-Tie
- Material: Carbon Steel
- Finish: Carbon Steel
- Bolt/Rod Diameter (in.): 3/4
- Hole Size (in.): 1
- Outside Diameter (in.): 31/32
- Length (in.): 17
- Install With: For use with Simpson Strong-Tie ET-3G epoxy adhesive
- Packaging: Packs of 1 and Cartons of 25
- Country of Origin: China
Approved Applications
- Hollow base material anchoring applications requiring adhesive containment
- Applications using Simpson Strong-Tie ET-3G epoxy adhesive with 3/4-in. threaded rod
Frequently Asked Questions
- What adhesive must be used with the ETS7517 screen tube?
- The ETS7517 epoxy screen tube must be used exclusively with Simpson Strong-Tie ET-3G formulations. Screen tubes are designed for a specific adhesive type, and using an incompatible adhesive may compromise performance and bonding results.
- What rod diameter is the ETS7517 screen tube designed for?
- The ETS7517 is designed for use with a 3/4-in. rod diameter. The outside diameter of the screen tube is 31/32 in., which is larger than the rod diameter, and requires a 1-in. hole.

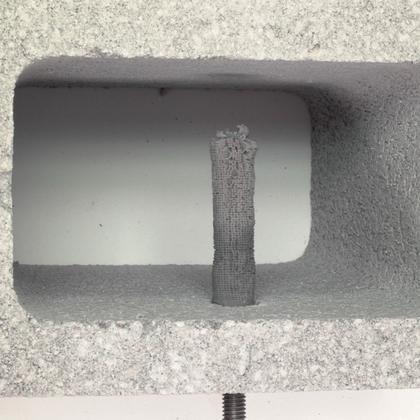

- Why are screen tubes used in hollow base material applications?
- Screen tubes are used in hollow base material applications to contain adhesive around the anchor and prevent it from running into voids. This ensures thorough coating and bonding of the rod to the screen tube and the base material.
- What is the ETS7517 screen tube made from?
- The ETS7517 screen tube is made from 60 mesh carbon steel, which is engineered to precisely control the amount of ET-3G epoxy adhesive that passes through the mesh for consistent and reliable bonding results.
