Product Description

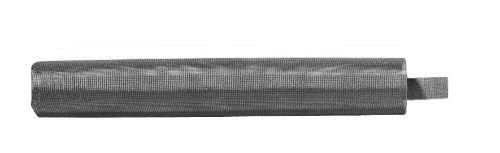

The Simpson ETS506 6-in. Steel Epoxy-Adhesive Screen Tube for 1/2-in. Rod from Simpson Strong-Tie is engineered for hollow base material anchoring applications where precise adhesive containment is critical. This screen tube keeps epoxy adhesive concentrated around the anchor rod, preventing it from migrating into voids and ensuring a thorough, reliable bond between the rod, the screen tube, and the surrounding base material.
Key Features
- Caution: Screen tubes are designed for a specific adhesive type
- This epoxy screen tube must be used with ET-3G formulations
- For 1/2-in. rod diameter
- Hole size: 11/16 in.
- Length: 6 in.
- Made from 60 mesh carbon steel
Specifications
- MPN: ETS506
- Brand: Simpson Strong-Tie
- Material: Carbon Steel
- Finish: Carbon Steel
- Bolt/Rod Diameter: 1/2 in.
- Screen Tube Diameter: 19/32 in.
- Hole Size: 11/16 in.
- Length: 6 in.
- Mesh: 60 mesh
- Compatible Adhesive: Simpson Strong-Tie ET-3G epoxy adhesive
- Packaging: Packs of 1 and Cartons of 100
- Country of Origin: China
Approved Applications
- Hollow base material anchoring applications requiring adhesive containment
- Installations using Simpson Strong-Tie ET-3G epoxy adhesive with 1/2-in. diameter anchor rods
Frequently Asked Questions
- What adhesive is the Simpson ETS506 screen tube compatible with?
- The ETS506 epoxy screen tube must be used exclusively with Simpson Strong-Tie ET-3G epoxy adhesive formulations. Screen tubes are designed for a specific adhesive type, and using an incompatible adhesive may compromise performance.
- What rod diameter is the ETS506 designed to accept?
- The ETS506 is designed for use with 1/2-in. diameter anchor rods. The required hole size for installation is 11/16 in., and the outside diameter of the screen tube itself is 19/32 in.

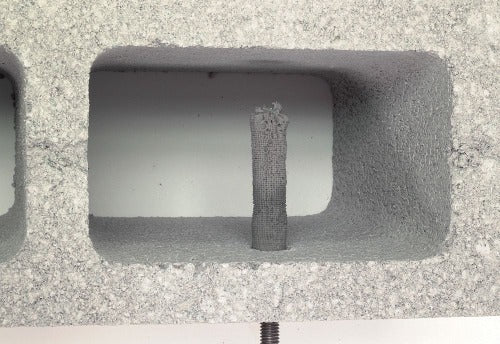

- Why are screen tubes necessary in hollow base material applications?
- Screen tubes are used in hollow base material applications to contain the adhesive around the anchor and prevent it from running into voids. This ensures thorough coating and bonding of the rod to the screen tube and the surrounding base material.
- What is the ETS506 screen tube made from?
- The ETS506 screen tube is made from 60 mesh carbon steel with a carbon steel finish, providing a structured mesh that precisely controls the amount of adhesive that passes through during installation.
