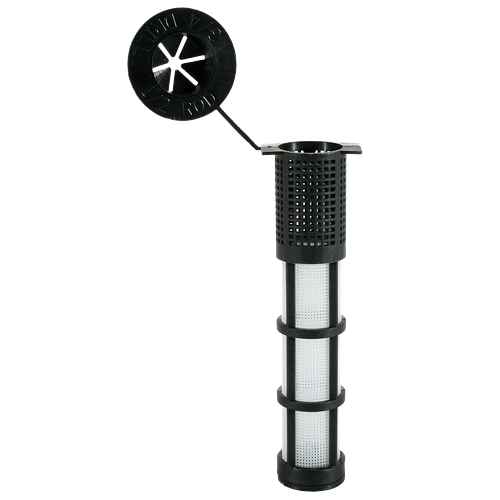

Simpson Strong-Tie Opti-Mesh 3-1/2 in. Acrylic Adhesive Plastic Screen Tube for 5/8 in. Rod (AT-XP) - Model AWS623P - is engineered by Simpson Strong-Tie to maximize the performance of adhesive anchors in hollow or void-containing base materials such as hollow block and brick. The Opti-Mesh screen tube features a woven mesh insert that delivers the economical advantage of a plastic screen tube while providing superior performance compared to steel screen tubes and competitive plastic screen tubes.

Key Features

• Integral cap centers the rod and displays drill bit and rod diameter
• Flanges prevent the screen tube from slipping into over-drilled holes
• Formula-specific woven mesh design controls flow of adhesive out of the screen
• Open-mesh collar allows extra adhesive flow in hollow block applications
• Made in the United States from durable plastic construction
• Caution: Screen tubes are designed for a specific adhesive type; acrylic screen tubes must be used with AT-XP

Specifications

• Manufacturer Part Number (MPN): AWS623P
• Brand: Simpson Strong-Tie
• Series: Opti-Mesh
• Compatible Adhesive: AT-XP (Acrylic)
• Rod Diameter: 5/8 in.
• Hole Size: 7/8 in.
• Length: 3-1/2 in.
• Material: Plastic
• Packaging: Packs of 1 and Cartons of 50
• Country of Origin: United States

Approved Applications

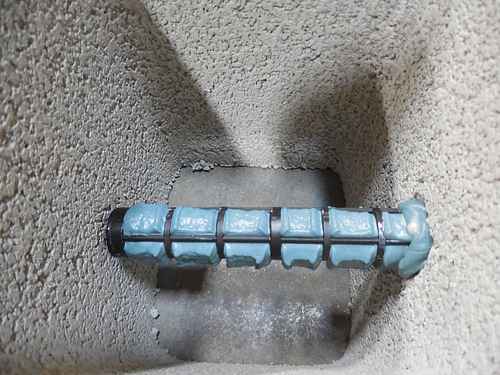

• Hollow block base materials requiring adhesive anchoring
• Brick and other base materials containing voids
• Installations using Simpson Strong-Tie AT-XP acrylic adhesive with 5/8 in. threaded rod

Frequently Asked Questions

Which adhesive must be used with the AWS623P screen tube?

The AWS623P is an acrylic screen tube and must be used exclusively with Simpson Strong-Tie AT-XP acrylic adhesive. Screen tubes are designed for a specific adhesive type, and using an incompatible adhesive can compromise anchor performance.

What is the purpose of the flanges on the Opti-Mesh screen tube?

The flanges on the screen tube are designed to prevent it from slipping into over-drilled holes, helping to ensure the tube stays properly positioned during the adhesive dispensing process.

Why should I use a plastic Opti-Mesh screen tube instead of a steel screen tube?

The Simpson Strong-Tie Opti-Mesh plastic screen tube provides the economical advantage of a plastic screen tube while delivering superior performance to both steel screen tubes and competitive plastic screen tubes. Its formula-specific woven mesh design precisely controls adhesive flow for optimal anchor performance.

What hole size is required for the AWS623P screen tube?

The AWS623P requires a 7/8 in. drilled hole to accommodate the screen tube, which is designed for use with 5/8 in. diameter rod. The integral cap displays the correct drill bit and rod diameter for easy reference during installation.

Note: Product dimensions may differ from picture. Please see the item description above for specifications.
