Simpson Strong-Tie Opti-Mesh 10 in. Acrylic Adhesive Plastic Screen Tube for 1/2 in. Rod (AT-XP) - Model AWS5010P is engineered for use with Simpson Strong-Tie AT-XP acrylic adhesive anchoring systems in hollow base materials such as hollow block and brick. The Opti-Mesh design combines the economical advantage of a plastic screen tube with superior performance over both steel screen tubes and competitive plastic alternatives, ensuring reliable adhesive anchoring in void-containing substrates.

Key Features

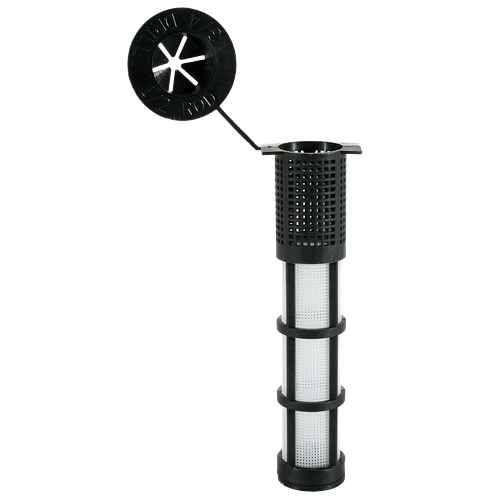

• Integral cap centers the rod and displays drill bit and rod diameter
• Flanges prevent the screen tube from slipping into over-drilled holes
• Formula-specific woven mesh design controls flow of adhesive out of the screen
• Open-mesh collar allows extra adhesive flow in hollow block applications
• Made in the United States from durable plastic construction
• Caution: Screen tubes are designed for a specific adhesive type; acrylic screen tubes must be used with AT-XP

Specifications

• Model Number (MPN): AWS5010P
• Brand: Simpson Strong-Tie
• Compatible Adhesive: AT-XP (Acrylic)
• Rod Diameter: 1/2 in.
• Hole Size: 3/4 in.
• Length: 10 in.
• Material: Plastic
• Packaging: Packs of 1 and Cartons of 50
• Country of Origin: United States

Approved Applications

• Hollow block base material installations
• Brick and masonry applications containing voids
• Adhesive anchor installations requiring controlled adhesive flow in hollow substrates
• Use exclusively with Simpson Strong-Tie AT-XP acrylic adhesive

Frequently Asked Questions

What adhesive is this screen tube compatible with?

This Opti-Mesh screen tube is specifically designed for use with Simpson Strong-Tie AT-XP acrylic adhesive only. Screen tubes are formula-specific, and acrylic screen tubes must be used exclusively with AT-XP. Using an incompatible adhesive type can compromise anchoring performance.

What rod and hole diameter does this screen tube accommodate?

This screen tube is designed for a 1/2 in. rod diameter and requires a 3/4 in. drilled hole size. The integral cap is designed to center the rod and clearly displays the correct drill bit and rod diameter for easy reference on the job site.

Why are screen tubes necessary for hollow block or brick installations?

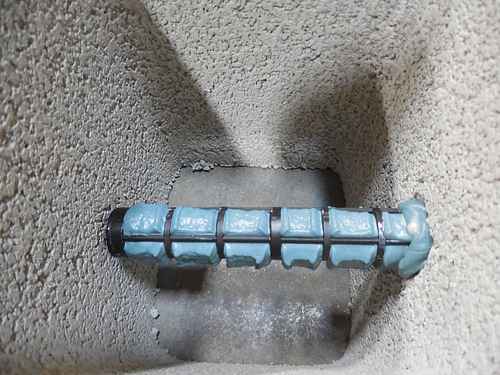

Screen tubes are vital to the performance of adhesive anchors in base materials that are hollow or contain voids, such as hollow block and brick. The Opti-Mesh woven mesh insert controls the flow of adhesive out of the screen while the open-mesh collar allows extra adhesive flow specifically in hollow block applications, ensuring proper adhesive distribution and anchor performance.

What prevents this screen tube from falling into an over-drilled hole?

The Opti-Mesh screen tube features flanges that are specifically designed to prevent the screen tube from slipping into over-drilled holes, keeping it properly positioned during adhesive dispensing for a secure and reliable anchor installation.
