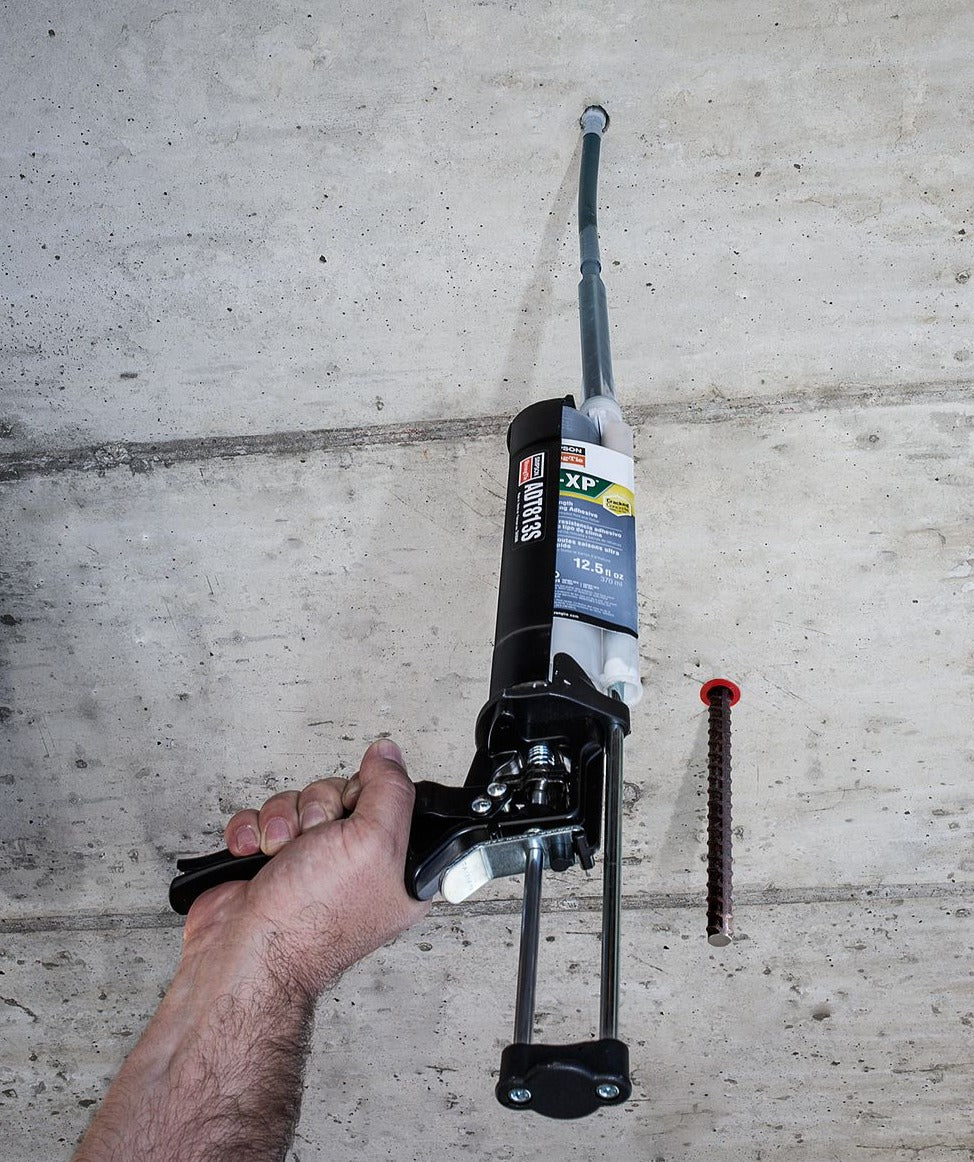

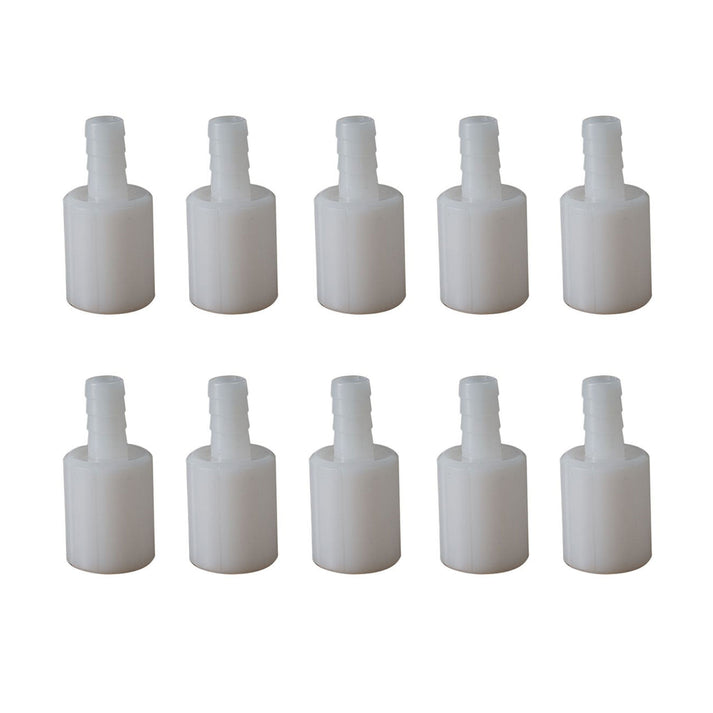

Simpson PP100-RP10 Adhesive Piston Plug for 1 in. Hole Diameter is a precision-engineered plastic plug from Simpson Strong-Tie designed for use with the Simpson Strong-Tie Piston Plug Delivery System. This system is built to dispense adhesive into drilled holes for threaded rod and rebar dowel installations in overhead, upwardly inclined, and horizontal orientations, as well as deep embedments and submerged (underwater) concrete conditions. The matched tolerance design between the piston plug and the drilled hole virtually eliminates the formation of voids and air pockets during adhesive dispensing, supporting consistent, high-quality adhesive placement throughout the embedment depth.

Key Features

• Model number is embossed on each plug for identification
• Helps reduce voids and air pockets for consistent adhesive placement
• Designed for use in a variety of installation orientations and embedment depths
• Works with any Simpson Strong-Tie anchoring adhesive
• This piston plug size (model PP100) can also be used for glued-in-rod (GIR) installations in timber when paired with Timber - SET structural epoxy anchoring adhesive
• Consistent adhesive distribution provided by the piston plug supports bond quality along the embedment depth for high - strength GIR connections
• Sized to fit 1 in. drilled hole diameter
• Barbed end provides a reliable connection to the flexible extension tubing

Specifications

• MPN: PP100-RP10
• Brand: Simpson Strong-Tie
• Hole Diameter: 1 in.
• Material: Plastic
• Packaging: Packs of 10 and Cartons of 100
• Country of Origin: China

Approved Applications

• Threaded rod and rebar dowel installations in drilled holes
• Overhead adhesive dispensing installations
• Upwardly inclined adhesive dispensing installations
• Horizontal adhesive dispensing installations
• Deep embedment concrete installations
• Submerged (underwater) concrete installations
• Glued-in-rod (GIR) installations in timber when paired with Timber - SET structural epoxy anchoring adhesive

Frequently Asked Questions

What is the Simpson PP100-RP10 piston plug used for?

The PP100-RP10 adhesive piston plug is used with the Simpson Strong-Tie Piston Plug Delivery System to dispense adhesive into drilled holes for threaded rod and rebar dowel installations. It is designed for overhead, upwardly inclined, and horizontal orientations, as well as deep embedments and submerged (underwater) concrete conditions.

How does the piston plug prevent voids and air pockets?

The matched tolerance design between the piston plug and the drilled hole virtually eliminates the formation of voids and air pockets during adhesive dispensing, ensuring consistent adhesive placement and supporting bond quality along the full embedment depth.

Can this piston plug be used with timber installations?

Yes. The PP100 piston plug size can also be used for glued-in-rod (GIR) installations in timber when paired with Timber - SET structural epoxy anchoring adhesive. The consistent adhesive distribution it provides supports bond quality along the embedment depth for high - strength GIR connections.

Is the PP100-RP10 compatible with all Simpson Strong-Tie anchoring adhesives?

Yes. The PP100-RP10 piston plug is compatible with any Simpson Strong-Tie anchoring adhesive, making it a versatile component within the Simpson Strong-Tie Piston Plug Delivery System.

Note: Product dimensions may differ from picture. Please see the item description above for specifications.
