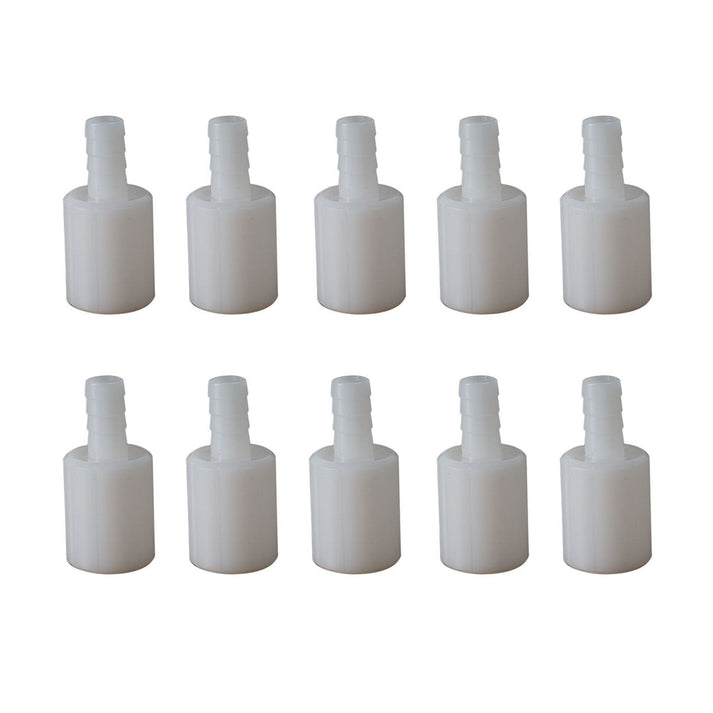

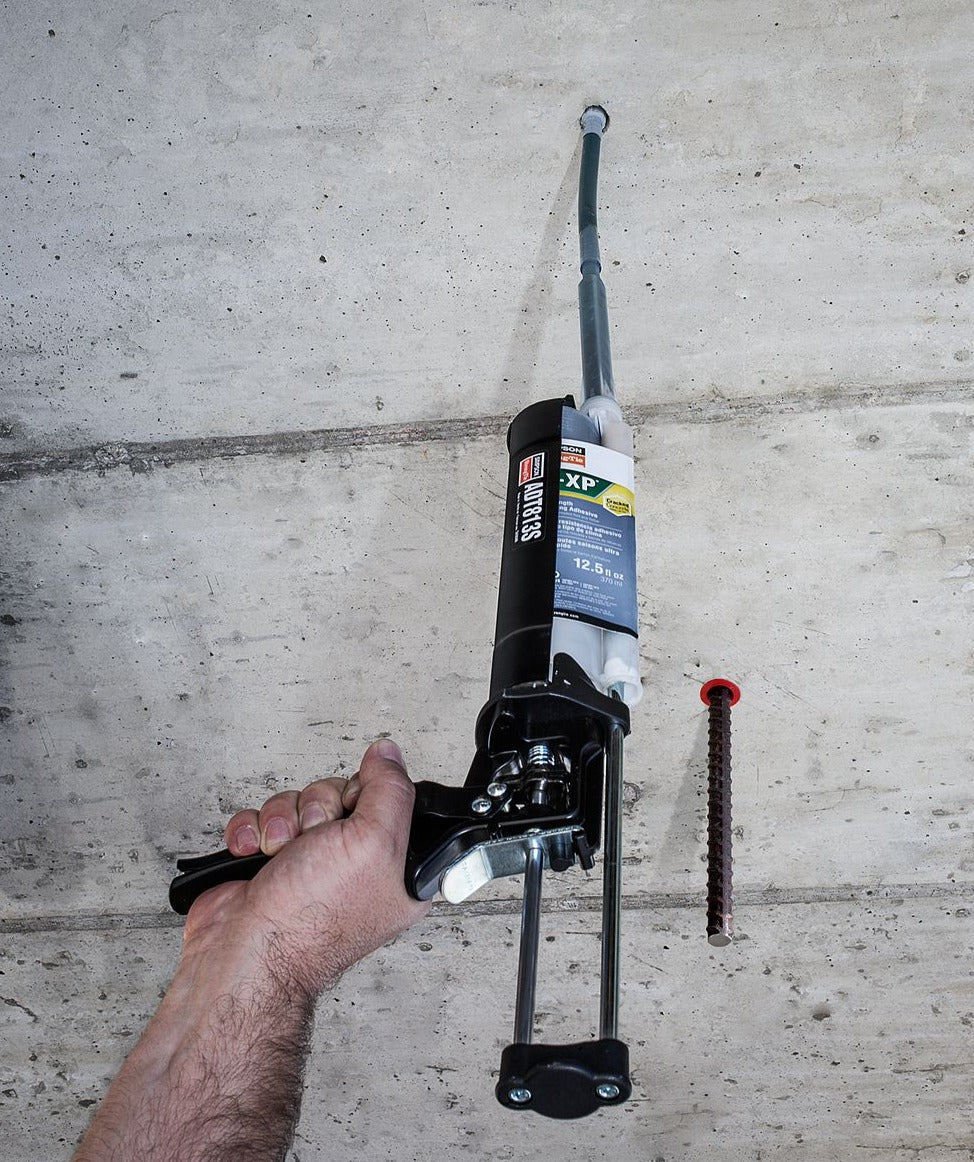

Simpson PP112-RP10 Adhesive Piston Plug for 1-1/8 in. Hole Diameter is a precision-engineered plastic plug from Simpson Strong-Tie designed for use with the Simpson Strong-Tie Piston Plug Delivery System. This system is purpose-built for dispensing adhesive into drilled holes for threaded rod and rebar dowel installations in overhead, upwardly inclined, and horizontal orientations, as well as deep embedments and submerged (underwater) concrete conditions. The matched tolerance design between the piston plug and the drilled hole virtually eliminates the formation of voids and air pockets during adhesive dispensing, supporting consistent, high-quality bond results.

Key Features

• Model number is embossed on each plug for identification
• Helps reduce voids and air pockets for consistent adhesive placement
• Designed for use in a variety of installation orientations and embedment depths
• Works with any Simpson Strong-Tie anchoring adhesive
• This piston plug size (model PP112) can also be used for glued-in-rod (GIR) installations in timber when paired with Timber - SET structural epoxy anchoring adhesive
• Consistent adhesive distribution provided by the piston plug supports bond quality along the embedment depth for high - strength GIR connections
• Sized to fit 1-1/8 in. drilled hole diameter
• A barbed end provides a reliable connection to the flexible extension tubing
• Material: plastic

Specifications

• MPN: PP112-RP10
• Brand: Simpson Strong-Tie
• Hole Diameter: 1-1/8 in.
• Material: Plastic
• Packaging: Packs of 10 and Cartons of 100
• Country of Origin: China

Approved Applications

• Threaded rod and rebar dowel installations in drilled holes
• Overhead adhesive installations
• Upwardly inclined adhesive installations
• Horizontal adhesive installations
• Deep embedment conditions
• Submerged (underwater) concrete conditions
• Glued-in-rod (GIR) installations in timber when paired with Timber - SET structural epoxy anchoring adhesive

Frequently Asked Questions

What is the purpose of the Simpson PP112-RP10 Adhesive Piston Plug?

The adhesive piston plug works in conjunction with the Simpson Strong-Tie Piston Plug Delivery System to dispense adhesive into drilled holes for threaded rod and rebar dowel installations. Its matched tolerance design virtually eliminates the formation of voids and air pockets during adhesive dispensing, ensuring consistent adhesive placement along the full embedment depth.

What drilled hole diameter is this piston plug sized for?

The PP112-RP10 is sized to fit a 1-1/8 in. drilled hole diameter, and is compatible with the matched-tolerance Piston Plug Delivery System components designed for that hole size.

Can this piston plug be used with any Simpson Strong-Tie adhesive?

Yes. The PP112-RP10 works with any Simpson Strong-Tie anchoring adhesive. Additionally, this piston plug size can be used for glued-in-rod (GIR) installations in timber when paired with Timber - SET structural epoxy anchoring adhesive.

Is the PP112-RP10 suitable for challenging installation orientations such as overhead or underwater applications?

Yes. The Piston Plug Delivery System is specifically designed for dispensing adhesive in overhead, upwardly inclined, and horizontal orientations, as well as deep embedments and submerged (underwater) concrete conditions. The matched tolerance between the plug and hole helps maintain adhesive placement integrity across all of these challenging scenarios.

Note: Product dimensions may differ from picture. Please see the item description above for specifications.
