Product Description

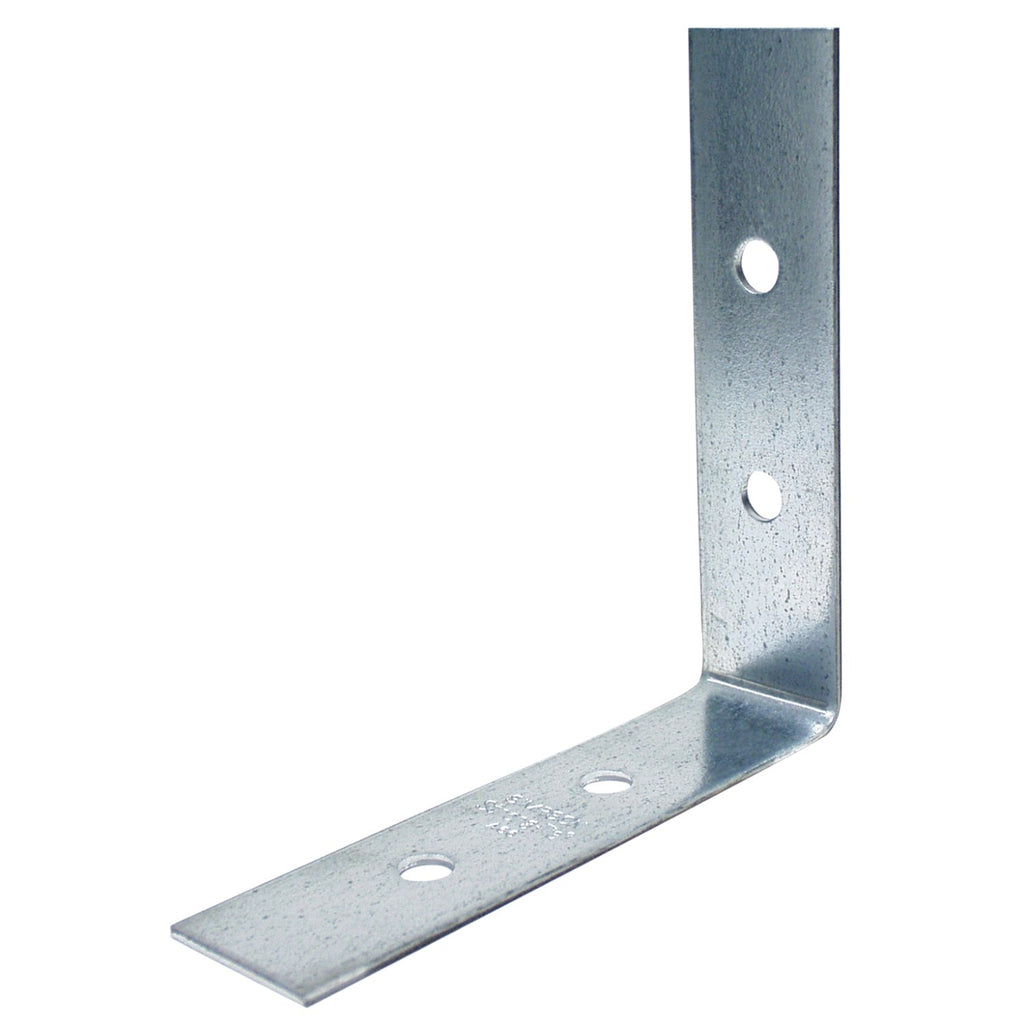

The Simpson A66 5-7/8 in. x 5-7/8 in. x 1 1/2 in. Galvanized Angle is a 12-gauge steel connector from Simpson designed to reinforce 90 deg. connections across a broad range of structural and home repair applications. Its symmetrical profile helps ensure right-angle joints come together consistently straight and properly aligned, while its G90 zinc galvanized finish delivers extra resistance against corrosion - making it a dependable choice for outdoor builds and environments where moisture is a concern. Installed with 3/8 in. diameter bolts, the A66 provides a level of joint strength that angled nailing or screw fastening alone simply cannot match.
Key Features
- Versatile 90 deg. connector - handles a wide variety of structural connections and home repair projects, reducing the need for multiple specialized fasteners
- Stronger than angled nailing or screw fastening alone - distributes load across both joined members for greater structural integrity at every joint
- Promotes consistently straight, properly aligned corners - helps eliminate the guesswork of freehand fastening so finished assemblies meet square reliably
- Made from 12-gauge steel - provides the material thickness needed for demanding connections without unnecessary bulk
- G90 zinc galvanized finish - delivers extra corrosion resistance for outdoor projects and applications where moisture is present
Why This Product
- Engineered for real structural load - because the A66 is installed with 3/8 in. diameter bolts rather than relying on nails or screws alone, it creates a more secure, load-bearing right-angle connection suited to projects where joint integrity matters
- Built to resist the elements - the G90 zinc galvanized coating goes beyond basic rust protection, making this angle bracket a practical fit for decks, fences, outdoor framing, and other moisture-exposed applications
- Symmetrical design simplifies layout - equal 5-7/8 in. legs on both sides mean no guessing which face goes where, speeding up installation and helping ensure consistent results across multiple connection points
- Backed by Simpson quality and U.S. production - Simpson is a widely trusted name in structural connectors, and the A66 is built to the dimensional and material standards that contractors and serious DIYers rely on
Specifications
- Model Number: A66
- Gauge: 12
- Width 1: 5-7/8 in.
- Width 2: 5-7/8 in.
- Length: 1-1/2 in.
- Coating/Finish: Zinc Galvanized, G90
- Install With: 3/8 in. diameter bolts (sold separately)
- Country of Origin: United States
Note: Product dimensions and/or nail or bolt holes may differ from picture. Please see item description for specifications.
Frequently Asked Questions
What size is the Simpson A66 angle?
The A66 measures 5-7/8 in. x 5-7/8 in. with a 1-1/2 in. length, providing a symmetrical 90 deg. angle profile suitable for a wide variety of structural connections.
What fasteners are required to install the A66?
The A66 is installed with 3/8 in. diameter bolts for a secure, code-compliant connection.
Is the Simpson A66 suitable for outdoor or high-moisture environments?
Yes. The A66 features a G90 zinc galvanized finish, which provides extra resistance against corrosion, making it appropriate for outdoor projects or applications where moisture is present.
How does using the A66 angle improve joint strength compared to nailing or screwing alone?
The A66 angle reinforces 90 deg. connections by distributing load across a broader surface area of both joined members, delivering greater structural integrity than angled nailing or screw fastening alone while also helping ensure joints remain consistently straight and properly aligned.
